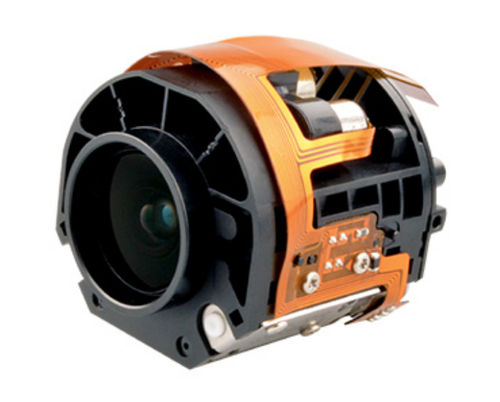

Varifocal camera lens E522 series

zoomcompactfor spatial imaging and surveying

E5229 Image Size(") - 1/1.7″ Focal Length(mm) - 4.4-10 F No. - 1.2 Field of View (H) - 104°-45.8° Back Focal Length (mm) - 6.28-11.64 Dimensions (Φ×L)mm - 53X50.5 Key Features • Dual ICR with true IR Correction design create good image performance at twilight environment • Iris Option: Fixed, Auto(DC), P-iris • Big aperture F#1.2 enable low light performance E5229A Image Size(") - 1/1.7″ Focal Length(mm) - 4.4-10 F No. - 1.2 Field of View (H) - 104°-45.8° Back Focal Length (mm) - 6.28-11.64 Dimensions (Φ×W×L)mm - 30.2X40.2X62.33 Iris - P - iris Key Features • Motorized control of zoom and focus • Compact design popular for Dôme and Bullet Caméras • IR-correction for Day & Night surveillance • Iris Option: Fixed, Auto(DC), P-iris • Big aperture F#1.2-F#2.7 enable low light performance E5228A Image Size(") - 1/1.7" Focal Length(mm) - 4.5-10 F No. - 1.6 Field of View (H) - 100°-45° Back Focal Length (mm) - 7.24-12.65 Dimensions (Φ×W×L)mm - 30.2X39.7X62.33 Iris - P-iris Key Features • Ultra-high resolution up to 10 Mega-pixel • Motorized control of zoom and focus • Compact design popular for Dome and Bullet Cameras • IR-correction for Day & Night surveillance • DC Iris, P-lris and Motorized zoom and focus type for option Applications Security / Surveillance
