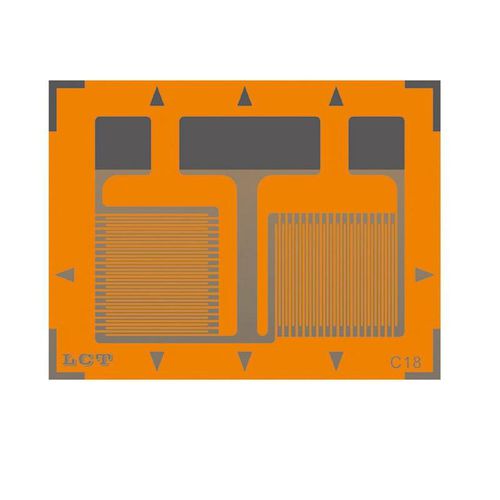

Resistive strain gauge CF350-2BB-A(XX)C##

biaxialrosette typehigh-accuracy

Features Gage patterns designed for measuring orthogonal strains All patterns have two grids oriented at 0°and 90°angles Both stacked and planar constructions available Description LCT's strain gauges are made of either constantan foil or evanohm foil and phenolic resin,they are flexible and simply peration.Mostly 350Ω/650Ω/700Ω/1000Ω/2500Ω/3000Ωstrain gauges are designed for sensor or transducer application. As using the special base material by ourself (LCT),ensure to non-linearity and hystersis of strain gauges be excellent;Precised seal structure is benefit to load cells be good stability for long-term;With advantages of self-temperature and creep compensation,which could be used for manufacturing load cells Class 0.02. All 60Ω/120Ωand part of 350Ω strain gauges are with advantage of self-compensation,good stability and flexible.They are specially designed for stress analysis,which can be used for micromeasurement.Customized product services are provided.
