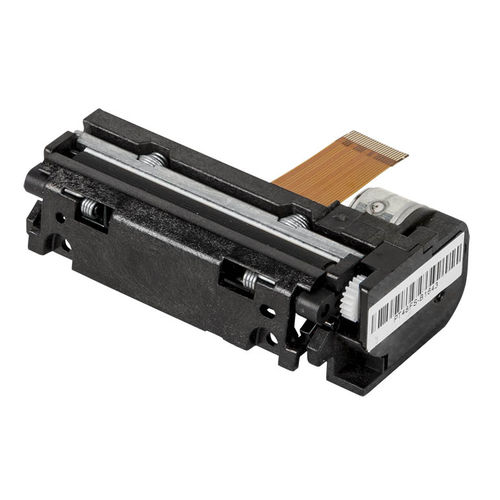

Direct thermal printer PT48F

desktopcompactindustrial

Overview 1. Low voltage supply The voltage used to drive the thermal printer head is equal to the logic voltage, or is driven by a 5V single power line; the range of operating voltage is 4.2V-9.5V. 2. Low volume Compact and Small size The mechanism is compact and light, dimensions: 68.5mm (width) * 36.5mm (depth) * 22.0mm (height). 3. Printing with High resolution A high-density printer head of 8 dots/mm makes the printing clear and precise. 4. High speed printing According to driving power and sensitivity of thermal paper, set different printing speed required. Max printing speed is 90 mm/ sec. 5. Easy paper loading Detachable rubber roller structure makess the paper loading easier. 6. Low noise Thermal line dot printing is used to guarantee low-noise printing. Specification Series Model PT48F PRINTING CHARACTERISTICS Print Method Direct line thermal Resolution 8 dots/mm Max. Printing Width 48mm Number of Dots 384 Paper Width 57.5±0.5mm Max. Printing Speed 90mm/s Paper Path Straight DETECTION Head Temperature By thermistor Paper Out By photo sensor Platen Open NA POWER SUPPLY TPH Logic Voltage 3.0V-5.5V Drive Voltage 4.2V-9.5V PEAK CURRENT Head(Max.) 3.14A(4.2V/64dots) Motor 340mA RELIABILITY Pulse Activation 100 million Abrasion Resistance 50KM ENVIRONMENTAL Operating Temperature -10-50℃ PHYSICAL CHARACTERISTICS Dimensions(W*D*H) 68.5*36.5*22.0mm Mass 42.9g
