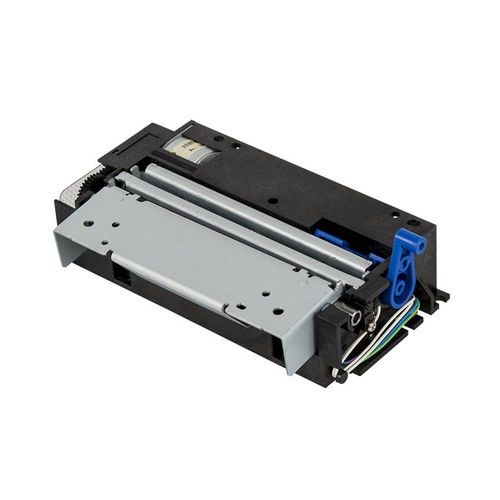

Direct thermal printer PT801

desktopcompactindustrial

Overview 1.Low voltage supply The voltage used to drive the thermal printer head is equal to the logic voltage, or is driven by a 5 V single power line, the range of operating voltage is 23.5V-25.2V. 2.Low volume Compact and light The mechanism is compact and light, dimensions: 102mm (width) * 54mm (depth) * 25.8mm (height) 3.Printing with High resolution A high-density printer head of 8 dots/mm makes the printing clear and precise 4.High speed printing According to driving power and sensitivity of thermal paper, set different printing speed required. Max printing speed is 220 mm/ sec. 5.Easy paper loading Detachable rubber roller structure makess the paper loading easier 6.Low noise Thermal line dot printing is used to guarantee low-noise printing. Specification Series Model PT801 PRINTING CHARACTERISTICS Print Method Direct line thermal Resolution 8 dots/mm Max. Printing Width 72mm Number of Dots 576 Paper Width 79.5±0.5mm Max. Printing Speed 220mm/s Paper Path Curved DETECTION Head Temperature By thermistor Paper Out By photo sensor Platen Open By mechanical SW POWER SUPPLY TPH Logic Voltage 3.0V-5.5V Drive Voltage 24V ±10% PEAK CURRENT Head(Max.) 3.3A(24V/144dots) Motor 300mA RELIABILITY Pulse Activation 100 million Abrasion Resistance 100KM ENVIRONMENTAL Operating Temperature 0 - 50℃ PHYSICAL CHARACTERISTICS Dimensions(W*D*H) 102*54.0*25.8mm Mass 175g
