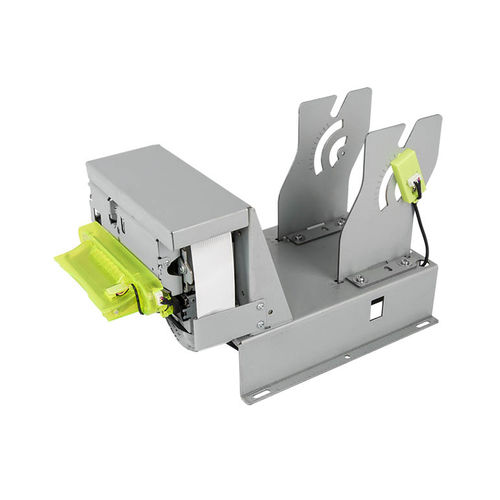

Direct thermal printer MPT725

desktopindustrial

Overview MPT725 is an extremely simple and functional printer. It is equipped with a 203dpi thermal printing mechanism. The general features of MPT725 thermal printer are as follows: 1.Very silent printing via direct thermal printing method. 2.Print speed: max.150mm/s 3.Versatile interface(USB,serial) 4.Support alphanumeric and graphic printing 5.High reliability autocutter 6.Easy-to-open cover structure Specification Series Model MPT725 PRINTING CHARACTERISTICS Print Method Direct line thermal Resolution 8 dots/mm Max. Printing Width 80mm Max. Printing Speed 150mm/s MEDIA Media Type Receipt Paper Paper Width 76mm/80mm/83mm Paper Roll Inner Diameter 10mm Paper Roll Outside Diameter 170 mm Thickness 56um ~ 150um Loading Automatic Paper Cutting Automatic DETECTION Head Temperature By thermistor Platen Open By mechanical SW Paper Out By photo sensor Paper Near End Detection By photo sensor Receipt Presence By photo sensor Paper Jam By photo sensor Cutter Home Position By Mechanical SW POWER SUPPLY Drive Voltage 24V±10%,2A FONTS Alphanumeric ASCII 8*16,12*24 Code Page Font A, 45; Font B, 16 BARCODE 1D UPC-A,UPC-E, EAN(JAN)18,EAN(JAN)13,CODE39,ITF,CODEBAR,CODE128,CODE93 2D QR Code COMMAND Program Language ESC/POS SOFTWARE Driver Windows 2000，XP,Vista, 7, 8, 10. server 2008, 2012 CUPS for Linux,MAC RELIABILITY Abrasion Resistance 150KM Cutter 1,500,000 cuts ENVIRONMENTAL Operating Condition -10℃~50℃，10% ~95%RH Storage Condition -40℃~50℃，5% ~95%RH
