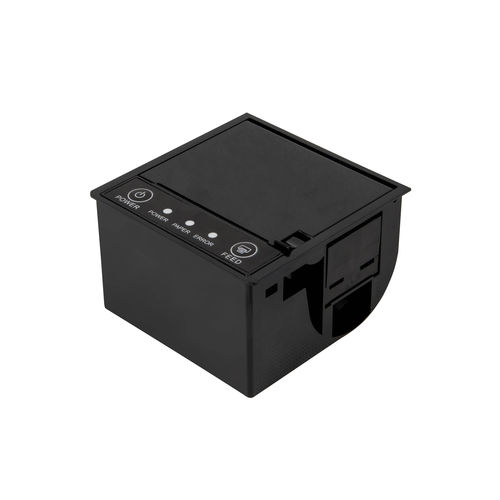

Direct thermal printer PM251

desktopindustrial

Overview PM251 is an extremely simple and functional printer. It is equipped with a 203dpi thermal printing mechanism. The general features of PM251 thermal printer are as follows: - Very silent printing via direct thermal printing method - Print speed: max. 80mm/s - Support alphanumeric and graphic printing Specification Series Model PM251 PRINTING CHARACTERISTICS Print Method Direct line thermal Resolution 8 dots/mm Max. Printing Width 48mm Max. Printing Speed 80mm/s MEDIA Media Type Receipt Paper Paper Width 58mm Paper Roll Inner Diameter 10mm Paper Roll Outside Diameter 50 mm Thickness 55um ~ 85um Paper Cutting Tear bar DETECTION Head Temperature By thermistor Paper Out By photo sensor Cover Open NA Interface USB,RS232,Drawer POWER SUPPLY Drive Voltage 8.5V±10%,2A FONTS Alphanumeric ASCII 8*16,12*24 Code Page Font A, 45; Font B, 16 BARCODE 1D UPC-A,UPC-E, EAN(JAN)18,EAN(JAN)13,CODE39,ITF,CODEBAR,CODE128,CODE93 2D QR Code COMMAND Program Language ESC/POS SOFTWARE Driver Windows 2000，XP,Vista, 7, 8, 10. server 2008, 2012 CUPS for Linux,MAC RELIABILITY Abrasion Resistance 50KM Auto Cutter NA ENVIRONMENTAL Operating Condition -10℃~50℃，10% ~95%RH Storage Condition -40℃~50℃，5% ~95%RH PHYSICAL CHARACTERISTICS Dimensions(W*D*H) 89*89* 55mm
