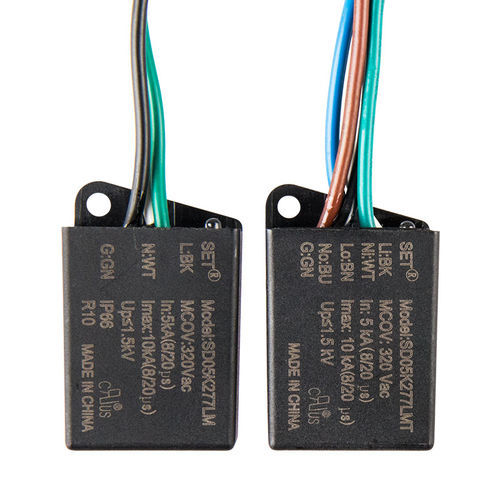

Class II surge protector SD05K seriesclass Iclass IIIoutdoor
Add to favorites
Compare this product
Characteristics
- Type
- class II, class I, class III
- Applications
- outdoor, for LED lighting
- Other characteristics
- common-differential mode, panel-mount
- Voltage
150 V, 320 V, 420 V
- Primary current
5,000 A, 10,000 A
Description
Surge protective devices (SPDs) are designed to meet requirements for UL 1449 Forth Edition and IEC/EN 61643-11. They are DIN-rail mountable featuring a fail-safe protection, visual indicator and remote signal contact. It has a good environmental adaptability and meets the requirements of high reliability in important field.
● Sealed Enclosure, IP66
● One-port or Two-port Surge Protective Device (SPD)
● Thermal Protection and Failure Indication
● Small Size
● RoHS & REACH Compliant
Termination Style
Wire
● Parking Lighting
● Highway Lighting
● Landscape Lighting
● Traffic and Signal Lighting
