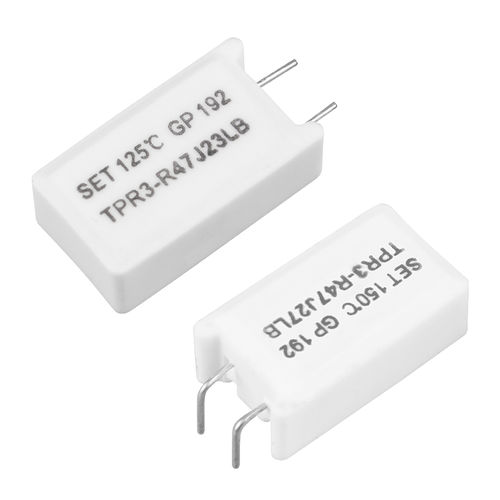

Wire-wound resistor TPR3 series

powershort-circuit proofceramic-housed

Thermally Protected Resistor (TPR) is an unique type of Power Resistor, with Over Temp. and Over Current Protections. Thermally Protected Resistor (TPR) is a type of power resistor, where Alloy Thermal-Link (ATCO) and Fusible Wirewound Resistor (RXF) are in series encapsulated in a ceramic case with silicone cement. SETsafe | SETfuse TPR has the same physical size as ordinary ceramic resistor while additionally providing fault current protection. TPR can also effectively protect against the damages to devices & equipment, caused by continuous heat dissipations by ceramic resistors due to fault currents. ● (20.5 × 11.5 × 7.0) mm ● Over Temp. Protection ● Small Fault Current Protection ● Inrush Current Protection ● RoHS Compliant Termination Style Radial ● Switch Mode Power Supplies (SMPS) ● Adapters ● Home Appliances and Office Appliances (TV, Washer, Fridge, Printer, etc.)
