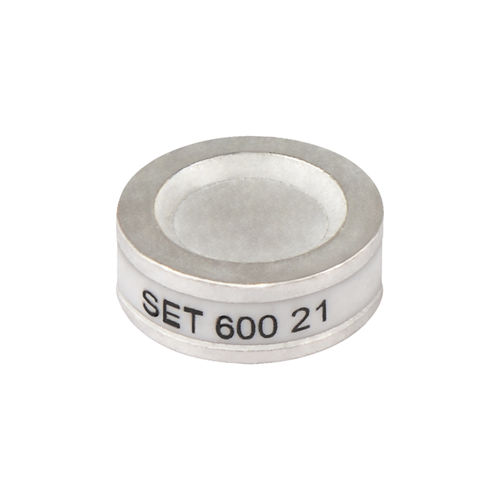

Gas discharge tube SPC series

Description The Gas Discharge Tube (GDT) is a protective device which is filled with certain proportion of noble gas, or mixed gas or other discharge media in the space between metal electrodes and metalized ceramics, and then sealed at high temperature to form a singlegap or multi-gap switch type protective device. When the protected circuit or equipment suffers to surge, GDT will change from high impedance state to low impedance state and release the surge energy to reduce the residual voltage of the circuit, and then protect the equipment or humanbody from the hazard of transient overvoltage. SPC series Type: Surge Arrestor D.C. Spark-Over Voltage (Vs): 90 ~ 1500 V Impulse Discharge Current (In) (8 / 20 μs): 20 kA Maximum Discharge Current (Imax) (8 / 20 μs): 40 kA Follow Current Cut-Off Ability (If): 100 A
