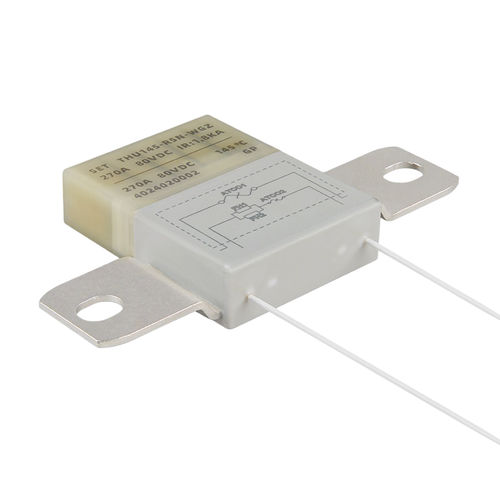

Axial fuse THU145-R series
thermalelectronic equipmentbattery

axial fuse
axial fuse
Add to favorites
Compare this product


Characteristics

Configuration
axial
Type
thermal
Applications
electronic equipment, battery
Amperage

200 A, 270 A

VAC

12 V, 24 V, 36 V, 48 V

VDC

80 V

Service temperature

145 °C
(293 °F)

Width

36.5 mm
(1.4 in)

Length

47.5 mm
(1.9 in)

Height

12.4 mm
(0.5 in)

Description

idea Thermal CutOff (iTCO) is a fuse that uses low melting point alloys as the electrical connection point of the main circuit, with built-in heater as the control circuit, to achieve controlled fusing function. idea Thermal CutOff (iTCO) is consist mainly of Thermal Element, Electrode, Flux Resin, Feed Heater, Alloy Thermal-Link and Lead wire, sealed in plastic or ceramic housings. idea Thermal CutOff (iTCO) is mainly used in the protection of new energy security, and secondary protection for charging and discharge circuits. idea Thermal CutOff (iTCO) mainly uses two electrodes which are connected with the thermal element of the fusing elements as electrical connections with passive temperature-sensing fusing actions. At the same time, Built-in heater with independent over-temperature protection heats the thermal element, provides sufficient heat to the fuse, cuts off the main circuit and disconnects the control circuit to achieve self-protection. SETsafe | SETfuse idea Thermal CutOff (iTCO) covers Rated Current from 20 to 270 A, Rated Voltage from 80 to 500 VDC, Rated Functioning Temp. 136 to 150 °C, with UL, cUL, TUV Approvals and RoHS, REACH compliant. Features ● Low Impedance, Low Power Consumption ● Fast Response Clearing Time ≤ 40 seconds ● Non-Resettable ● Active Control ● Over Temperature Protection ● Self-Control Protection ● RoHS & REACH Compliant
