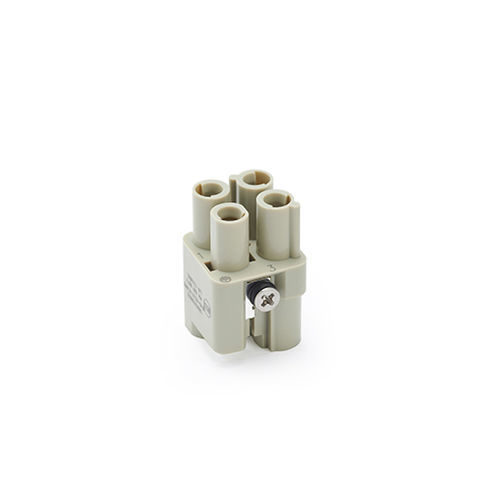

Data connector HQ-003/0-FCcrimpinsulationvoltage
Add to favorites
Compare this product
Characteristics
- Type
- data
- Connection type
- crimp
- Electrical characteristics
- insulation, voltage
- Material
- copper, gold, wire, silver
- Product applications
- terminal, gauge, tool
- Primary current
40 A
- Voltage
6 V, 400 V
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
Inserts
Number of contacts - 3+PE
Electrical data acc. to EN 61 984 -
- Pollution degree - 3
Rated voltage acc. to UL/CSA - 600V
Insulation resistance - ≥1010Ω
Material - polycarbonate
Colour - RAL 7032（light grey）
Limiting temperatures - -40℃...+125℃
Flammability acc. to UL 94 - V0
Mechanical working life(mating cycles) - ≥500
Contacts
Terminal: - crimp terminal
Material - copper alloy
Surface - hard-silver plated
- hard-gold plated
Contact resistance - ≤1mΩ
Wire gauge -
--mm2 - 1.5-10mm2
--AWG - 16-8
Tools
Crimp cntact tool: -
--TL02-0G - 1.5-6mm2
--TL02-3G - 4/6/10mm2
Contact removal tool: - TL06G
