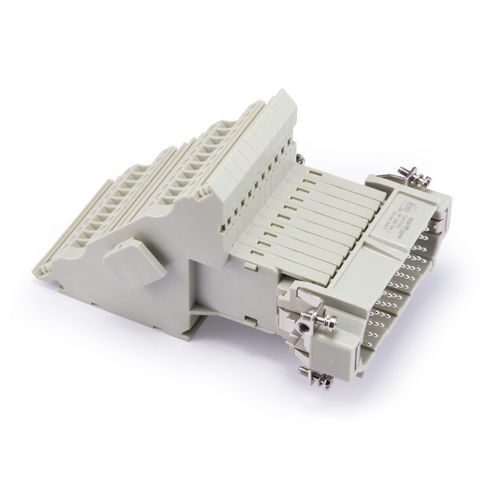

Data connector HD-040-M.AV.Lscrewinsulationvoltage
Add to favorites
Compare this product
Characteristics
- Type
- data
- Connection type
- screw
- Electrical characteristics
- insulation, voltage
- Material
- copper, tin, wire, silver
- Product applications
- terminal, gauge
- Primary current
10 A
- Voltage
4 V, 250 V
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
Electrical data acc. to EN 61 984 -
---Pollution degree - 3
---Pollution degree 2 also - 10A 230/400V 4kV 2
Rated voltage acc. to UL - 600V
Insulation resistance - ≥1010Ω
Material - polycarbonate
Flammability acc. to UL 94 - V0
Mechanical working life(mating cycles) - ≥500
Contacts
Material - copper alloy
Surface -
---mating side - hard-silver plated
---termination side - tin plated
Contact resistance - ≤10mΩ
Screw terminal -
---Wire gauge - 0.2-2.5mm2
---AWG - 24-14
---Tightening/test torque - 0.5Nm
