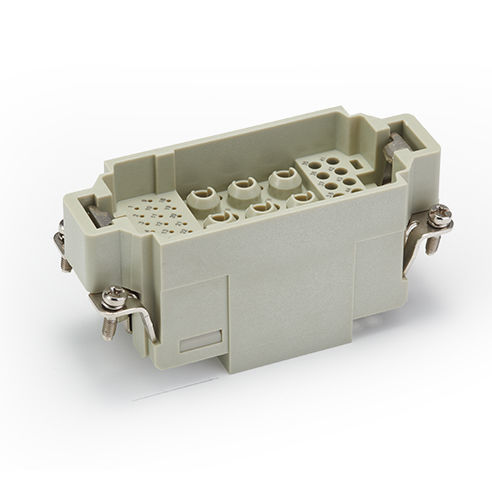

Data connector HK-009/12/25-MCcrimppowerinsulation
Add to favorites
Compare this product
Characteristics
- Type
- data
- Connection type
- crimp
- Electrical characteristics
- power, insulation, voltage
- Material
- copper, gold, silver
- Product applications
- terminal
- Primary current
5 A, 10 A, 40 A
- Voltage
50 V, 250 V, 630 V
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
Number of contacts - 9/12/25
Signal area -
---Pollution degree - 3
Power area -
---Pollution degree - 3
Rated voltage acc. to UL - 600V
Insulation resistance - ≥1010Ω
Material - polycarbonate
Flammability acc. to UL 94 - V0
Mechanical working life(mating cycles) - ≥500
Contacts
Material - copper alloy
Surface - hard-silver plated
hard-gold plated
Contact resistance - ≤3mΩ/1mΩ
Crimp terminal -
---mm² - 0.09-0.52mm²/0.14-2.5mm²/1.5-6mm²
---AWG - 28-20/26-14/16-10
Stripping length - 5/8/9(9.6)mm
