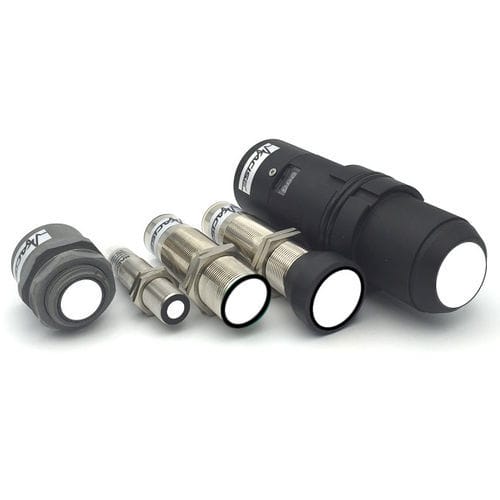

Ultrasonic level sensor KU series
for oilfor waterRS-485

ultrasonic level sensor
ultrasonic level sensor
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Medium
for water, for oil
Interface
4-20 mA, Modbus, RS-485, RS-232
Other characteristics
IP66, IP65
Level range

Max.: 60 m
(196'10" )

Min.: 0.5 m
(1'07" )

Process temperature

Max.: 125 °C
(257 °F)

Min.: -55 °C
(-67 °F)

Description

Transmitting ultrasonic transducer emits ultrasonic pulses propagated to the measured media through communication media, through reflection and then return to the receiving transducer through the acoustic medium, the measured ultrasonic pulse propagates from the transmitter to the receiver in the acoustic medium of time. Then according to the speed of sound in the acoustic medium, it can be considered from the transducer to the media surface distance. To determine the liquid level. Therefore, we can calculate the distance from the probe to the reflecting surface D = C * t / 2 (divided by 2 is because the sound waves from the transmitter to the receiver is actually a round, D is the distance, C is the speed of sound, t is the time). The Ultrasonic sensor uses sound waves to do non-contact and wear-free detection on target subjects. It can be used to detect either transparent or colored objects, metal objects or non-metallic objects, as well as solid, liquid or powdered substance. Ambient conditions such as environmental smoke, dust, environment or rain have very small affect on the detection performance of ultrasonic sensors. Features Non-contact measurement Short response time With display Level value output or distance output FAQ 1. Q: What information need to be provided to choose the suitable model? A: Please provide us: application field, range , output signal, medium, power supply, so we can choose model and quote for you quickly. 2. Q: Are you a trade company or a manufacturer? A: We are an ISO approved manufacturer specialized in level and flow measuring instruments. OEM & ODM service are available. Welcome to visit us.
