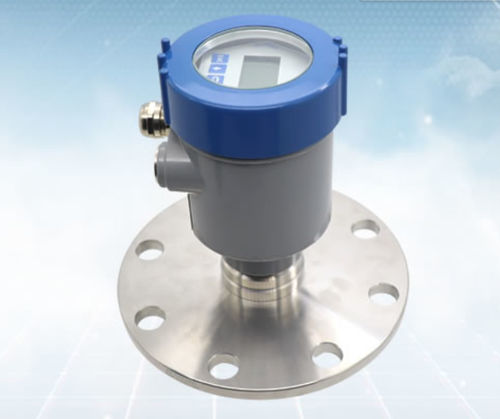

Radar level transmitter KLD803

for liquids4-20 mAHART

80GHz high frequency radar level meter has the advantages of small antenna size, narrow beam, large signal bandwidth and high range resolution. PTFE sensor for liquid, especially corrosive liquid. Feature Cast aluminum shell: safe, durable (not easy to oxidize and rust), light weight, strong plasticity (strong ductility) Stainless steel shell: 304 (high temperature resistance, high toughness), 316L (corrosion resistance) False wave learning function Medium: strong corrosive liquid, steam, foam Process connection: flange ≥ DN50 Antenna size: 34mm lens antenna (according to flange size) Antenna material: PTFE Accuracy: ±1mm (range below 35m) ±5mm (range between 35m and 100m) Center frequency: 80GHz Launch angle: 3° Power supply: two-wire /DC24V four-wire /DC12~24V four-wire /AC220V Casing: aluminum/stainless steel Installation Method Flange Installation When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm. datum plane vessel center or axis of symmetry Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers. What we could provide: The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
