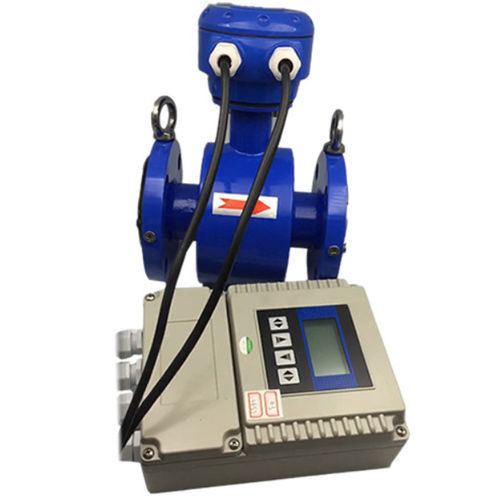

Electromagnetic flowmeter KEF

for liquidsDN10 - 3/8"in-line

Electromagnetic flowmeter is a kind of instrument to measure the flow of conducting fluid according to the electromotive force induced by the external magnetic field by applying the principle of electromagnetic induction. The structure of electromagnetic flowmeter is mainly composed of magnetic circuit system, measuring conduit, electrode, shell, lining and converter. KEF series electromagnetic flowmeter is widely used in sewage treatment, chemical industry, metallurgy industry, pharmaceutical factories, water supply plants and other industrial sectors, the flowmeter for 4~20mA output, RS485 communication. In addition to measuring general liquids, electromagnetic flowmeters can also measure some types of solids, such as liquid-solid mixed fluids, high viscosity fluids, acid, alkali and salt flow. Features 1. No moving parts, compact structure, strong, long service life. (1 year warranty) 2. No cut-off site, no pressure loss and fluid blockage. 3. No mechanical inertia, fast response, good stability, suitable for automatic detection, regulation and control. 4. Measurement accuracy is not affected by physical parameters, such as flow rate, temperature, viscosity, density and pressure. 5. Can provide inline type, insert type and other types of flowmeter. EEPROM memory is used to measure running data, and the memory protection is safe and reliable. 6. High pressure sensor with PFA liner, high pressure and negative pressure resistance, suitable for chemical and corrosive solutions. 7. It is not only suitable for general engineering, but also suitable for mining, paper and other harsh applications.
