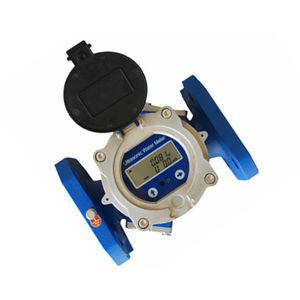

Ultrasonic flow meter KUW3000-A

for waterDN80 - 3"DN150 - 6"

KUW3000-A series Insertion ultrasonic water meter is a new-style water meter specifically designed for agricultural irrigation,garden management and water resource supervision. Advantage of this water meter include low cost, high accuracy, low power consumption,stability and reliability.1 inch thickness of the meter helps to save the installation space,and all parts achieve to IP68 enable the water meter work in any severe environment.Due to the unique design structure,there will be no pressure loss and different water medium will have no influence on measurement. This ultrasonic water meter will be a major breakthrough for water measurement in agricultural irrigation. Features 1. Protection Level IP68 Whole machine waterproof:whole machine sealed completely,reach IP68 protection level. Parts waterproof: each part reach to IP68 separately,esnsure long term work even if the meter get into water. 2. Built-in Volume Controller,Built -in Time Accumulato Automatically start the controller at the set time,achieve to supply water automatically,regularly and quantitatively. Time-sharing flow accumulation within the set period of time,to achieve gradient rate. 3. Untrasound Measurement No rotation, No moving Parts Ensure Long-term high measuring accuracy Apply to varieties of water quality,including the water contain gravel and weeds. Display and Operation 58*22mm LCD Display the instantaneous flow , accumulative flow,time and various kinds of working status Support Bi-directional Flow Measurement
