Machine vision camera xiMU

medicalfor roboticsindustrial

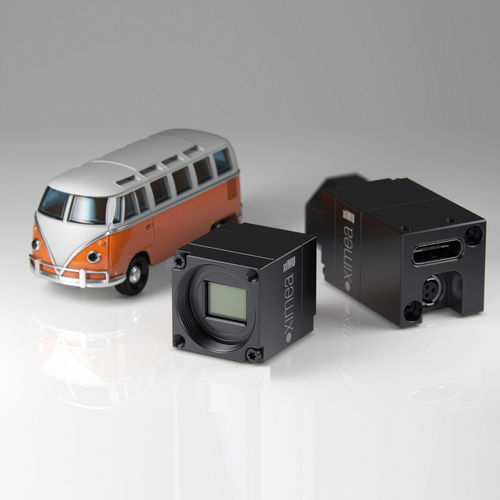

Tiny footprint of 15 x 15 mm to 17 x 17 mm with 5 and 19.6 Mpix models. The smallest industrial USB3 cameras in the world - now even with global shutter BSI sensors. What is xiMU? Engineered for the smallest possible volume and weight, made with an advanced high-density manufacturing and assembly process. The xiMU cameras are the smallest cameras in our portfolio and even in the world of industrial cameras. All of the latest models come with a USB3 interface (USB-C, flex or micro coax cables) to support the full potential of sensor bandwidth and ensure simplicity of use. All this together with less than 5 grams weight and less than 1 watt power consumption, makes them also ideal for a plethora of embedded, mobile, and space-restricted applications, such as UAVs. • Miniature camera - Only 15 x 15 x 8 mm and mere 5 grams • High resolutions - From 5 Mpix models up to new 18 Mpix • Next level speed with more than 20 FPS at 18 Mpix • Low power consumption starting at under 1 watt • Support - Windows, macOS, Linux, ARM and many vision libraries • Software - Gen|Cam / GenTL and API / SDK for image processing • Industry interface compliance for USB 3.1 Gen1 and USB 2.0 • Flexible flat ribbon cables make it suitable for embedded vision • Synchronization - 4x I0 configurable as input or output • Range of accessories and compact lenses through S-mount • Customizable - Available as board level with various adapters • SWAP - Size, weight and power consumption ideal for UAV & drones • Time proven - In production for more than 15 years
