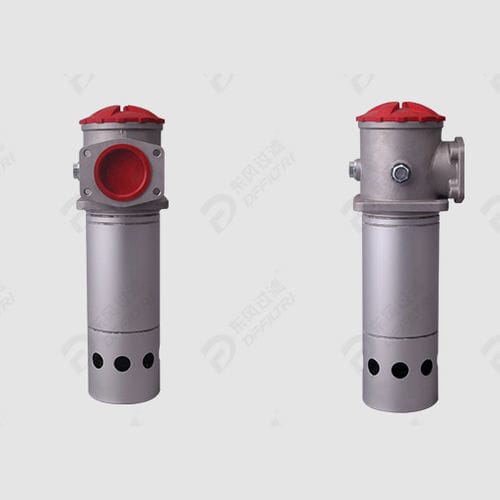

Suction filter TF series

oilcartridgepressure

The cover and the lower housing of the TF series filters adopt threaded connection; filter bowl is spun on the lower housing. This filter is with check valve, by-pass valve and clogging indicator,when filter element is withdrawn for washing or replaced; the check valve will close automatically to stop oil flowing out from the tank. 2.1 Housing material Filter cover material: High strength plastic end cap Filter bowl material: High strength composite membrane aluminum tube 2.2 Seals Perbunan (= NBR); Viton (= FPM)(Customizable) 2.3 Filter element Filter medium material High strength carbon steel skeleton 2.4 Optional accessories ZKF-II Clogging indicator ZS-V Clogging indicator 2.5 Type of connection (choose according to filter type) Metric thread connection (if inch threaded connection is needed, please contact us) Flanged connection
