AC/DC power supply ECL25 series

single-outputsingle-phasewith short-circuit protection

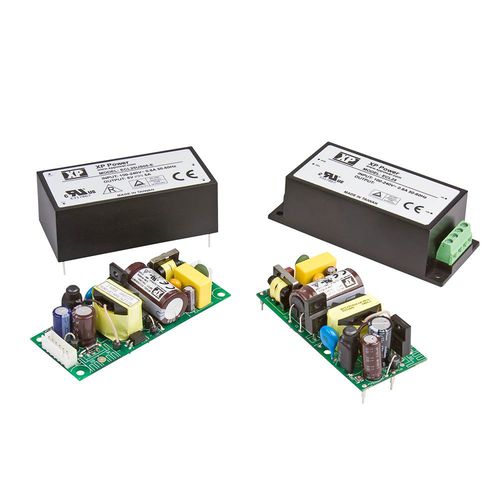

The ECL25 series can be supplied as PCB mount open frame (suffix -P), PCB mount encapsulated (suffix -E), open frame chassis mount (suffix -T), or as encapsulated chassis mount with screw terminals (suffix -S) with an optional DIN clip (suffix -SD). With approvals to international safety standards, compliance with class B for conducted & radiated emissions with no external components required and a 130%, 30s peak load capability, these class II isolation parts are easy to integrate into a wide range of applications. FEATURES Peak load capability 3.0kVAC input to output isolation No external components required <0.3W no load input power -25°C to +70°C operating temperature Full load to +50°C 3 year warranty
