Infrared motion sensor MVN Awinda Starter

wirelessradio

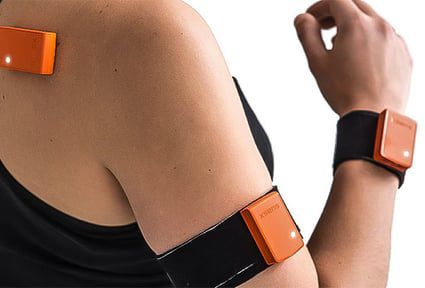

Xsens Awinda Starter is the most affordable Xsens quality mocap hardware To capture inertial body movement, our Xsens Awinda models use 17 wireless sensors, fitted on the body with adjustable straps. This supports fast, easy, and reliable motion capture. Its portability also makes it ideal for group and education settings. Robust and accurate Use anywhere – no lab required Live stream with ease Magnetic immunity Fast set-up time Low latency Affordable Don’t let the name fool you Comfort Can be worn over normal clothes. Range Maximum range of 25 m. Frame rate Maximum of 60 Hz frame rate. Specifications Technical specifications Update rate Up to 60 Hz Wireless range 25 m Battery life 6 hr Wireless communication Radio protocol (Awinda protocol) Wireless datalink Dongle antenna Technical specifications Clothing Full body strap set (including 3 Awinda shirts in size S, L & XL) Charging USB cables for Awinda sensors, plus a 6-port USB charger Latency 30 ms On-body buffering 30 sec Sensors 17 wireless sensors Technical specifications Hardware synchronization Third party – e.g. EMG sensors, force plate; optional with additional Awinda station Casing Neoprene shell case Finger tracking Full compatibility with Xsens Metagloves by Manus, Xsens gloves by Manus, Manus Prime II, and Stretchsense gloves
