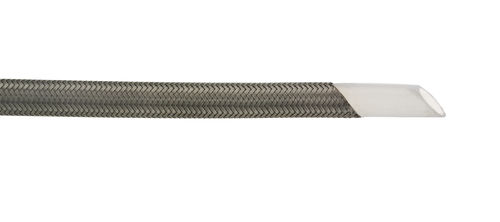

Gas hose Speed Flow G/D/7/1/B.PTFEfor hydraulic systemswith smooth inner surface
Add to favorites
Compare this product
Characteristics
- Use
- for gas
- Material
- PTFE
- Applications
- for hydraulic systems
- Other characteristics
- with smooth inner surface, double-walled, stainless steel-braided
- Inner diameter
Min.: 6.35 mm
(0.25 in)Max.: 10.54 mm
(0.415 in)- Outer diameter
Min.: 9.65 mm
(0.38 in)Max.: 14.86 mm
(0.585 in)- Pressure
310 bar, 415 bar
(4,496.17 psi, 6,019.066 psi)
Description
Speed Flow is manufactured from virgin PTFE resin with a double braid of aramid and AISI 304 stainless steel, high tensile braid to suit hydraulic fittings in high pressure applications. Between the two braids a layer of PTFE. The stabilised PTFE inner core guarantees minimum diffusion through the wall making it ideal for gas applications.
Catalogs
Speed Flow G/D/7/1/B
1 Pages
