Steam hose Convo Flow® H/W1/B1
for oilPTFEcorrugated

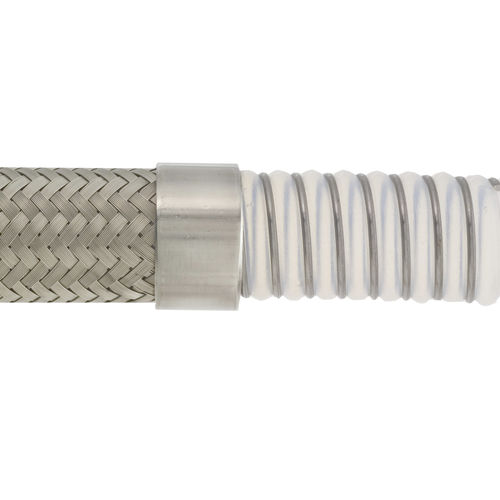

Steam hose - Convo Flow® H/W1/B1 - XTRAFLEX NV - for oil / PTFE / corrugated
Steam hose - Convo Flow® H/W1/B1 - XTRAFLEX NV - for oil / PTFE / corrugated
Steam hose - Convo Flow® H/W1/B1 - XTRAFLEX NV - for oil / PTFE / corrugated - image - 2
Add to favorites
Compare this product


Characteristics

Use
for steam, for oil
Material
PTFE
Other characteristics
corrugated, PTFE inner liner, stainless steel-braided
Inner diameter

Min.: 19.5 mm
(0.768 in)

Max.: 99.5 mm
(3.917 in)

Outer diameter

Min.: 28.6 mm
(1.126 in)

Max.: 127.5 mm
(5.02 in)

Pressure

Min.: 10 bar
(145.038 psi)

Max.: 60 bar
(870.226 psi)

Description

Construction A helically convoluted PTFE (polytetrafluorethylene)suction/pressure hose, heavy wall, with external vacuum wire and high tensile stainless steel braid. The hose is very good vacuum and kink resistance. Fittings Hose fittings with PTFE tail Hose fittings with Hydraulic tail Industrial fittings Industrial fittings with PTFE lining Typical applications: Convo→Flow ®-H/W1/B1 should be specified for steam applications or when high vacuum hose applications are required. Generally excellent mechanical strength.
