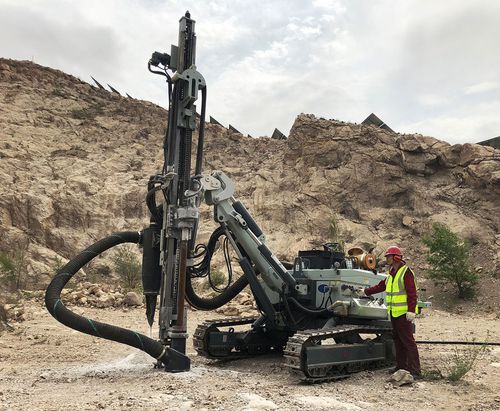

Rotary drilling rig TAIYE-360-DTH

hydraulicconstruction

TAIYE-360-DTH drill rig is an economical drilling rig, which is suitable for drilling holes in hydropower, building material, metallurgy, large and medium earthwork and open-pit mines. When the speed reaches the peak torque at 1500rpm, which will achieve the most economical model. TAIYE-360-DTH extends the excellent process quality of TAIYE-370-DTH, which is powerful and durable. It is the best tractor mounted drilling machine for you to have less investment and a steady return in drilling construction. 1. Off-road capability of Semi-hydraulic DTH drilling rig The center of gravity of the whole machine is in a low position,and the climbing ability of the single machine is 35 degrees.A stable output of the walking motor,which has high braking sensitivity.The chassis clearance is 435mm from the ground,facing the rugged site,demonstrates its passing ability. 2. Carriage and Boom The carriage inclines 20 degrees, which is convenient for operator observe the drilling situation, improves the drilling accuracy. 3. Control deck The working height of the whole machine is 1600mm. The walking valve can swing between 0 and 90 degrees in order to observe the moving state clearly, selecting the operating angle according to the working condition, and prevent the traction accident. A comfortable and layout of the working condition,and prevent the operating platform conforms to ergonomics, which can realize the centralized control of multiple executing structures,the operating valve is sensitive and accurate.
