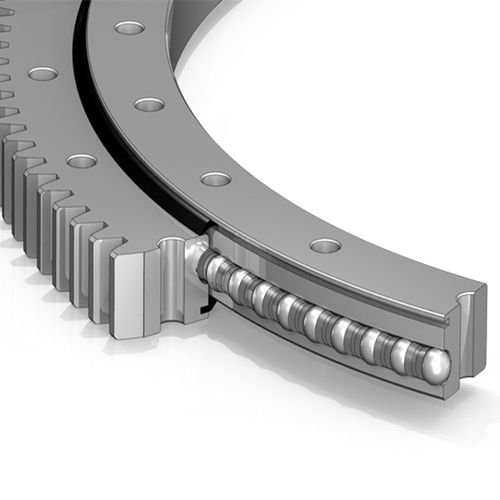

External-toothed slewing bearing Thin seriesball bearingsingle-rowfour-point contact
Add to favorites
Compare this product
Characteristics
- Teeth
- external-toothed
- Rolling element
- ball bearing
- Geometry
- single-row, four-point contact, spherical
- Applications
- for public works, excavators and cranes
- Other characteristics
- for heavy loads
- Inner diameter
Min.: 398 mm
(15.67 in)Max.: 2,922 mm
(115.04 in)- Outer diameter
Min.: 602 mm
(23.701 in)Max.: 3,376 mm
(132.913 in)- Width
Min.: 80 mm
(3.15 in)Max.: 174 mm
(6.85 in)
Description
The single-row four point contact ball type slewing bearing is composed of two socket sleeves and is compact in structure and light in weight .Due to its steel balls contact with circular rollingtrack on four points,it can bear axialforce ,radial force and overturning moment at the same time,and it can be selected for use in engineering machinerysuch as rotary conveyer,welding operation machine,medium and small-scale hoists,and excavator.
Single-row four point contact ball type slewing bearing is composed of two socket sleeves and is compact in structure and light in weight .Due to its steel balls contact with circular rollingtrack on four points,it can bear axialforce ,radial force and overturning moment at the same time
