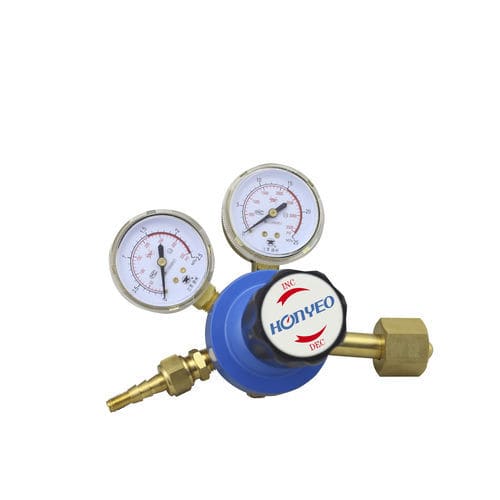

Oxygen pressure regulator JA series
for inert gasesdiaphragmsingle-stage

oxygen pressure regulator
oxygen pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for oxygen, for inert gases
Technology
diaphragm
Number of stages
single-stage
Applications
welding
Other characteristics
compact, high-precision, with pressure gauge, high-performance, high-purity
Pressure

Max.: 12.5 bar
(181.3 psi)

Min.: 0.3 bar
(4.35 psi)

Flow

0.2 m³/h, 0.6 m³/h
(7.06 ft³/h, 21.19 ft³/h)

Description

Application: The JA Single Stage Pressure Regulator is developed by Hongye. It is built suitable for jointing ,incision and pyrogenation. The unit is built with high quality performance suitable for a wide range of applications. Specification: It is supplied with 15 Mpa maximum input pressure, reduce pressure to 0.03 to 1.25 Mpa output pressure, 25 Mpa inlet gauge, and 2.5 Mpa outlet gauge. Many standard connections upon request. Gas application: Oxygen, Argon, and non-corrosive gas Material : brass & Aluminum
