Temperature control relay WebRelay-10 Plus™

pulseSPDTEthernet

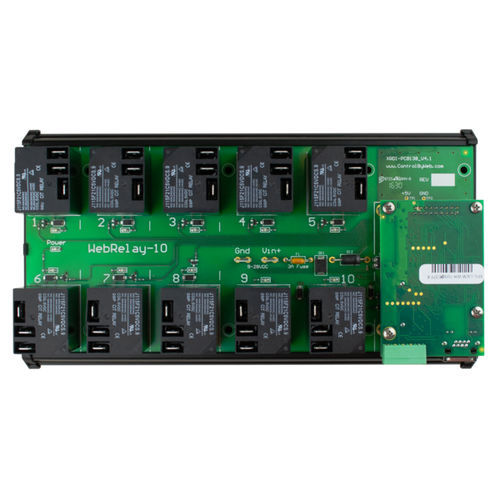

WebRelay-10 provides remote relay control to 10 industrial-grade, high-power relays Overview WebRelay-10 Plus™ is a robust, industrial relay board with Ethernet communications. It provides remote relay control through its ten large 15A relays. The relays can be individually controlled using a standard web browser or by sending commands from a custom control application. It is self-contained with a built-in web server, and requires no external software, additional network modules, or computers. WebRelay-10 is designed for industrial applications and can be DIN-Rail mounted inside a control cabinet. Tab connectors (1/4 inch) are used for power and relay contact connection. Updated 400 Series Firmware We've updated the WebRelay-10 Plus™ to include our 400 series firmware New, adding this 10-relay controllerl to our robust I/O platform. Additional features include an event scheduler, customizable email alerts, two discrete inputs, device logging, and remote temperature monitoring. Features WebRelay-10 Plus Ten independent 15A Relays - SPDT (Form C). Relay modes: On, Off, and Pulse. Built-in web server for browser-based setup and control. No special software or device drivers required. Dry-contact sensors or switches can be connected for local control of relays or for monitoring external devices. Task Builder with drag and drop logic and task creation. Event-based and Scheduled logic. Data logging: event-baseed and schduled, relay and input state changes, etc. Programmable email alerts. Up to 16 temperature sensors can be added for environmental monitoring (one temperature sensor included). Protocols DIN-Rail mountable. 1/4-inch tab-connectors.
