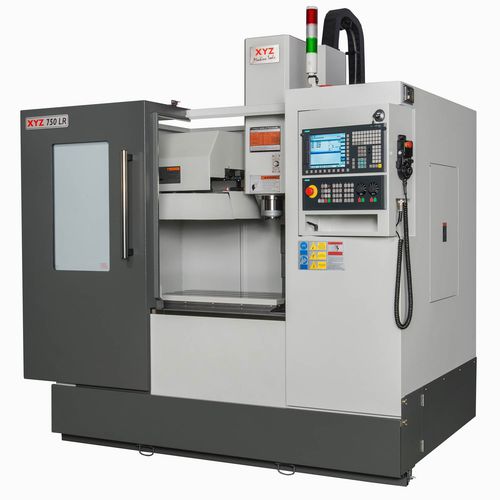

3-axis machining center XYZ 750 LR

verticalwith rotary tableBT 40

The use of linear rails on machining centres has been common for many years, as they allow users to take advantage of improvements in digital motion control and modern cutting tool performance, therefore maximising their competitiveness. Now, with the latest design advances in linear rail technology, XYZ Machine Tools feel that they meet its own stringent performance standards, while still providing a cost advantage and the arrival of the three machine XYZ LR range is the result. Sitting in the middle of the new XYZ LR range of linear rail machines, the XYZ 750 LR’s capacity will make it the most popular choice for those looking to step up to CNC vertical machining centre operation at a very competitive price. With axis travels of 750 x 440 x 500 mm the XYZ 750 LR has the capacity to handle the majority of work passing through a typical machine shop. Add to that the 8000 rpm, BT 40 spindle, 20 position toolchanger and a maximum table load of 500 kg it is a more than capable machine. Demonstrations of the XYZ 750 LR are available at any of the XYZ showrooms. Standard Equipment -Siemens 828D Control. -Optimised Digital Servos. -Rigid Tapping. -Flood Coolant. -Worklight. -Easy Clean Swarf Tray. -Steel Concertina Guards on all axes. -Powder Coated Guarding. -Pull Studs. -USB Port. -Compact Flash Card Slot.
