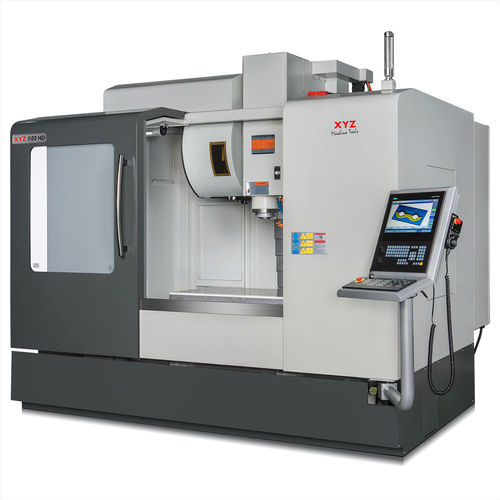

3-axis CNC machining center XYZ 1100 HD

verticalfor cast ironBT 40

Hardened box ways with Turcite coated slides have been the first choice for XYZ machines for many years, as they are renowned for providing the best solution for machine tool construction. The combination of machine weight and hardened box slideways guarantees a highly rigid machining platform, providing exceptional vibration damping, especially on intermittent cutting across a wide range of materials, such as Inconel, titanium, cast iron or stainless steel. This completely new structure has a newly designed base that allows for better support of the X and Y travel and increases table load capacity from 800 kg to a massive 1500 kg. There is never any table overhang and the table is always fully supported. Built on a solid Meehanite, computer modelled, ribbed casting with induction hardened, ground and Turcite-B coated, slides gives the XYZ 1100 HD superb vibration absorption and rigidity. The optimised digital servo motors and automatic lubrication of the slides and ballscrews also ensures maximum rapid traverse rates. Performance has been proven in some of the toughest machine shop environments to reassure customers that an XYZ machining centre is a true workhorse that you can depend on for many years of reliable and accurate operation. At XYZ we believe that it is really important in the machine buying process to see the machine cutting metal before you buy. Standard Equipment -Siemens 828D Shopmill 15″ Touchscreen Control or Heidenhain TNC 620 Control. -Touch Screen. -Optimised Digital Servo’s. -Hardened Table. -Rigid Tapping. -Twin Swarf Augers. -Swarf Conveyor & Bin from Auger. -High Pressure Flood Coolant. -Coolant Washdown. -LED Worklight.
