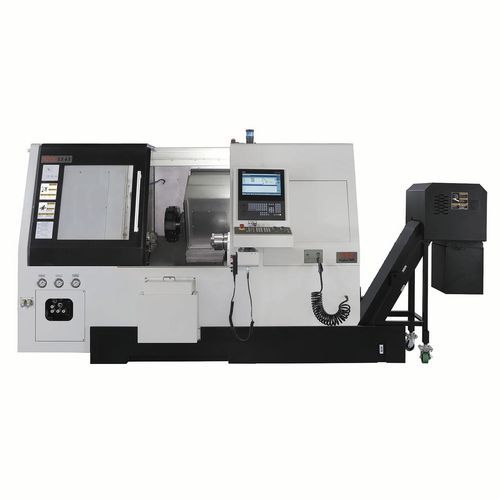

CNC turning center XYZ SS 653-axisinclined bed2-spindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Structure
- inclined bed
- Number of spindles
- 2-spindle
- Spindle mount
- A2-6, A2-5
- Number of tool stations
- 12 tools
- Performance
- high-precision, high-productivity
- Diameter
150 mm, 200 mm
(5.91 in, 7.87 in)- Spindle speed
4,000 rpm, 5,000 rpm
(25,132.741 rad.min-1, 31,415.927 rad.min-1)- Rapids on X
24,000 mm/min
(16 in/s)- Rapids on Z
24,000 mm/min
(16 in/s)- Nominal power
11 kW, 16.5 kW
(15 hp, 22.4 hp)- Maximum torque
11 Nm, 16 Nm
(8 ft.lb, 12 ft.lb)- Coolant capacity
480 l
(127 gal)- Overall lenght
4,020 mm
(158 in)- Overall width
3,135 mm
(123 in)- Overall height
1,950 mm
(77 in)- Weight
5,000 kg
(11,023 lb)
Description
This new machine in the XYZ range is perfect for those larger production runs, where the whole job is best done in one hit.
The twin / sub spindle turning centre with live tooling and Y axis gives you the ability to machine both ends of a component reducing the frequency of loading and unloading. This reduces idle time and improves productivity, milling and turning can be done in one set up.
The 30°one-piece slant bed provides a rigid base.
Linear ways ensure faster travel and precision.
Standard Equipment
-Siemens 828 ShopTurn/ShopMill
-Touchscreen Control.
-Sauter “German” Turret 12 Station VDI30.
-Y Axis.
-Live Tooling.
-Parts Catcher.
-Swarf Conveyor and Bin.
-Renishaw Automatic Toolsetting Probes.
-C Axis for Complex Contour with Brake.
-30° One Piece Slant Bed.
Optional Equipment
Bar Feed.
Collet Chuck.
Contour Handwheel.
Advanced Swarf Management.
Offline Programming.
