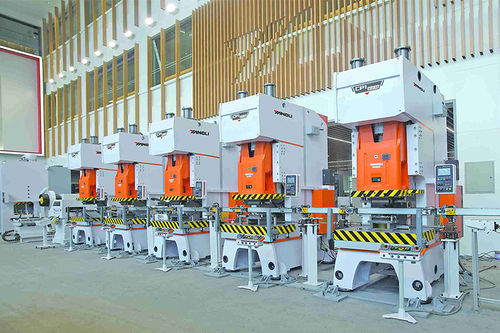

Electromechanical press CP1 seriesPLC-controlleddigitalwith front loading/unloading
Add to favorites
Compare this product
Characteristics
- Operation
- electromechanical
- Control
- PLC-controlled
- Other characteristics
- digital, with front loading/unloading
- Force
Max.: 1,100 kN
Min.: 250 kN
Description
CP1 series open front single point press with high performance(general)
Introduction
·JIS I accuracy.
Steel welded frame with high rigidity.
Fixed SPM.
·Combined dry friction clutch.
Six-face rectangular lengthened guide;CP1-315B/400B with
eight-face lengthened guide.
·Hydraulic overload protector.
·CP1-25:manual adjustment with digital display.
·Press bigger than CP1-45:elec.adjustment with digital display.
·Lifting balance cylinder.
Imported dual solenoid valve.
Elec.forced grease lubrication.
◆Balance cylinder:manual oil lubrication.
·Integrated panel(elec.cam,touch screen included).
PLC control of international brand.
Contactor and buton of international brand.
（1）set blowing device.
Optional:wet clutch,air cushion(air bag or cylinder type),light
curtain,motor with inverter,slide knockout device,bolster LR
housing,automation device,press dark or light colour is optional.
