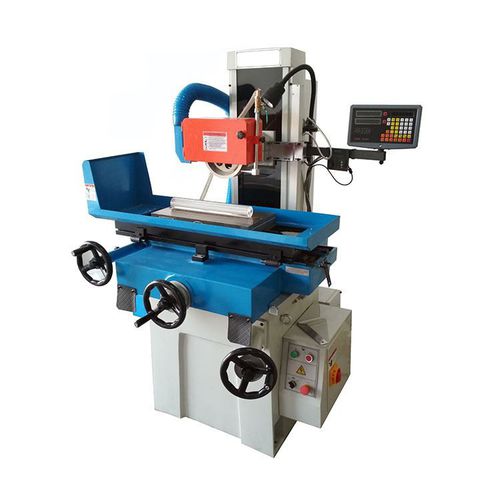

Shaping grinding polishing machine SG03V2.1

quartz glass rod

SG03V2.1 Quartz Tube Rod Shaping and Grinding Machine is specialized in the plane grinding and shaping process of quartz tube rods. It is suitable for the shaping and polishing process of various optical fiber preforms. According to different process requirements, it can carry out special shapes such as triangle, quadrilateral, polygon, trapezoid and ellipse. Shape grinding operations. The equipment is compact, small in area, simple and convenient to operate, can realize automatic and manual feeding, with special working fixture and grinding wheel, can effectively improve the efficiency of tube rod grinding, it is a necessary model for special optical fiber manufacturers to reduce costs and increase efficiency. Features ● The grinding speed can be adjusted steplessly; ● Special precision abrasive tools and fixtures; ● Y-direction feed of bar material, the feed amount can be set (CNC version); ● The grinding head feeds in X direction, and it can run back and forth automatically; ● The grinding head Z feed, the feed amount can be set (CNC version); ● Water cooling system; Technical index ● Diameter of processed glass rod: ≤50㎜ ● Grinding length: ≤450㎜ ● Maximum grinding width: ≤150㎜ ● Maximum effective grinding height: 300㎜ ● Spindle speed: 3600 (60HZ)/2800 (50HZ) r/min ● Working table size: 150×457㎜ ● Equipment power: 1.1KW ● Equipment size: L (1150㎜) x W (1100㎜) x H (1700㎜) ● Equipment gravity: 1100kg
