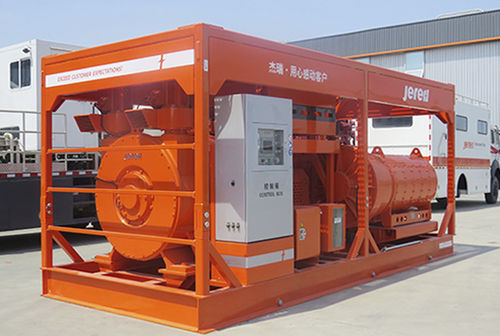

Plunger pump YLQ105-3000Dfor gaselectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- for gas
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial
- Other characteristics
- compact, small
- Flow
2.18 m³/min, 2.69 m³/min
(76.98597 ft³/min, 94.99645 ft³/min)- Pressure
Max.: 15,000 psi
Min.: 12,800 psi
- Length
6,300 mm
(248 in)- Width
2,550 mm
(100.39 in)- Height
2,550 mm
(100.39 in)
Description
Electric drive and stepless speed regulation deliver high stability during operation.
Compared with diesel drive, consumption per working hour is lowered by 58%.
Operating noise is 21.7% lower than the conventional pumpers.
Equipment is compact in structure, small in size and light in weight and has the highest power density of 134 kw/t in the industry.
JR5000QPN plunger pump offers dedicated solutions for shale gas jobs of big displacement, high pressure and long operating hours.
