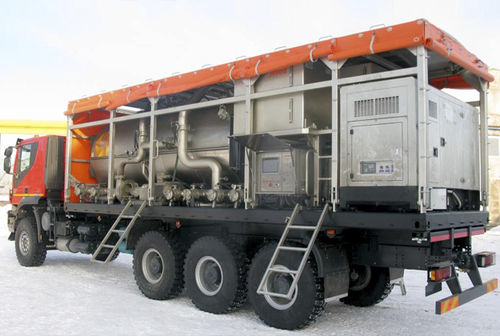

Oil heating unit

Super heating equipment suitable for heating the fracturing fluid or other medium in arctic areas; The maximized heat exchange area improves the heat exchange rate greatly to above 94%; Dry burning protection and overtemperature protection ensure the safety during operation; Jereh intelligent control system permits one-key setting and automatic temperature regulation. Multi-function manifold allows heating of the supplied water, quick discharge and quick switch between the heated vessels. Heater designed with insulation and low viscosity oil pump for arctic applications. Carrier - Truck / Trailer / Skid Chassis - BENZ / BEIBEN Generator - 64 hp (48 kW) Centrifugal Pump - 5×4×14 Heater - 4.1 MW (14 M Btu/h) Fuel - Diesel / LPG / CNG / LNG Max. Working Pressure - 43 psi (0.3 MPa) Heating Capacity - 528 gpm (2 m3/min) Heating Medium - Water / Frac Fluid
