Multi-channel manifold

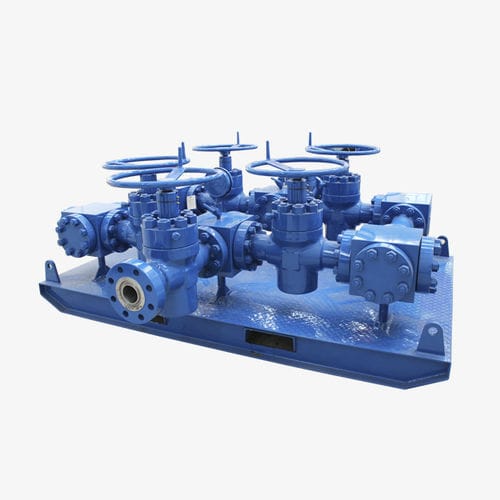

Multi-channel manifold - Yantai Jereh
Multi-channel manifold - Yantai Jereh
Multi-channel manifold - Yantai Jereh - image - 2
Add to favorites
Compare this product


Characteristics

Number of channels
multi-channel
Operating pressure

Min.: 5,000 psi

Max.: 15,000 psi

Port size

16 in

Description

Choke Manifold and Data Head are key components in surface test system. Features Choke Manifold Used to control flow and pressure during testing Special five-valve module (gate valve) Double-bean design: one (1) positive choke valve with a pressure relief valve on one side and one (1) manual choke valve on the other side. Full bore and two-way metal seal Choke bean features hard alloy inside, delivering high resistance to erosion and corrosion. Data Head Installed on upstream and downstream of choke manifold, equipped with pressure ports and temperature ports to connect pressure gauge, pressure sensor and chemical injection device. Easy for pressure and temperature record and monitor. A sampling port is available for fluid sampling. Pressure port can be used to inject chemicals such as anti-freezing agent and anti-foaming agent to prevent hydrate from blocking flow path. Autoclave is available for pressure above 10,000psi. Specifications Temperature Level - L, P, U Material Grade - DD, EE, FF, HH Manufacturing Level - PSL2, PSL3, PSL3G, PSL4 Performance Level - PR1, PR2 Standards - API SPEC 6A , API SPEC 16C
