- Yantai Weichi Petro Mine Machinery Co., Ltd

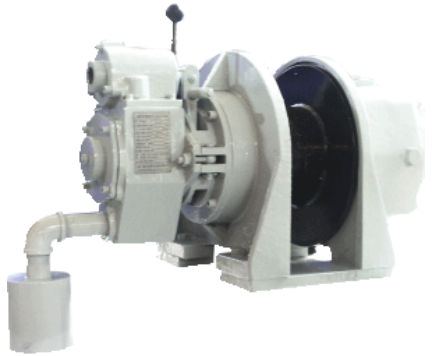

Air-operated winch JQYS-10X16hoistingrotary drumlever
Add to favorites
Compare this product
Characteristics
- Operation
- air-operated
- Type
- wire rope
- Application
- hoisting
- Other characteristics
- rotary drum, lever
- Capacity
1,000 kg
(2,204.6 lb)- Speed
10,000 mm/min
(6.6 in/s)
Description
Description
Pressure of compressed air: 0.5-0.7Mpa
Hoisting load: 1000kg
Testing load: 1250kg
Air motor: 6kw*3200rpm
Rope speed :10m/min
Gas volume:8m3/min
Handle force:about 7.8kgf
Drum diameter:280mm
Drum width:300mm
Drum wheel rim diameter:355mm
Rope content:50m
Wire rope diameter:10mm
Outer dimension:710x420x385mm
