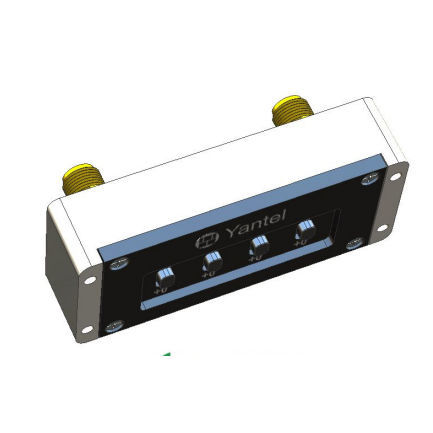

RF attenuator VAS061501S2*A

variable

DC to 4GHz 0 to 15dB in 1dB Step 2 Watt Connector Type: SMA,N,TNC,F,BNC etc. available. Using advanced microstrip technology, ultra-small size Attenuation values are adjustable in a power-on state, no sudden big reflection. It adopts an innovative technology, and thus it eliminates sudden big reflection in attenuators when attenuation is being adjusted, preventing the preliminary RF circuit from being burnt, and keeping the system stable Step attenuation: 1dB, 2dB, 4dB, 8dB 16 attenuation values High attenuation accuracy, low insertion loss High adjustment accuracy Low cost – High Performance Adjusting the transmitting (receiving) distance of RF signal precisely. Adjusting accuracy is limited to 5cm. Switch repeatability avg.> 10000 operations (5000 cycles) per switch. PC(Polycarbonate) Switch, operating temperature of 120℃ is available. Attenuation values are adjustable in a power-on state, test data can be read continuously, no interruption. Frequency Range DC to 4.0GHz Attenuation 0 to 15dB Step Value 1dB Insertion loss at 0dB (typ.) SMA connector 0.45dB at 1 GHz 0.55dB at 2 GHz 1.10dB at 3 GHz 1.30dB at 4 GHz Attenuation Accuracy (typ.) SMA connector 0 to +0.50dB at 1GHz 0 to +0.85dB at 2GHz 0 to +1.55dB at 3GHz 0 to +2.50dB at 4GHz Nominal Impedance 50 Ohm Average Power 2 Watt Operating Temperature -40℃ to +85℃
