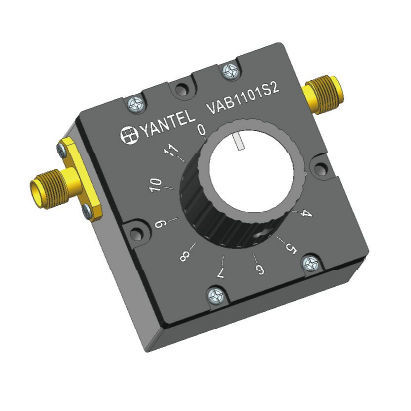

Coaxial attenuator VAB1101S2

variable

DC to 0 to 11dB in 1dB Step 2 Watt or 5 Watt SMA Connectors，N type，BNC available Ultra small size with innovative microstrip technology Available step value:0dB, 1dB, 2dB, 3dB, 4dB, 5dB, 6dB, 7dB, 8dB, 9dB, 10dB, 11dB. High accuracy High performance low cost Impedance: 50 or 75 ohm Operation repeatability:10000 times each switch Pom material in rotary switch, operating up to 85℃ Frequency Range DC to 2.7GHz Attenuation 0 to 11dB Step Value 1dB Insertion loss at 0dB 0.5dB at2GHz 1dB at2.7GHz Attenuation Accuracy 0.2dB at 1GHz (typical) 0.5dB at 1GHz (max) 0.7dB at 2GHz (typical) 1.0dB at 2GHz (max) 1.0dB at 2.7GHz (typical) 1.5dB at 2.7GHz (max) Nominal Impedance 50 Ohm Average Power 2 Watt Operating Temperature -40℃ to +85℃ Repeater: In deploying the indoor repeater system, Rotary Variable Attenuator is ideal to control the signal and keep each repeater in its specific coverage range. This VAB series can be rack mountable, easier to operate from the rack outside.
