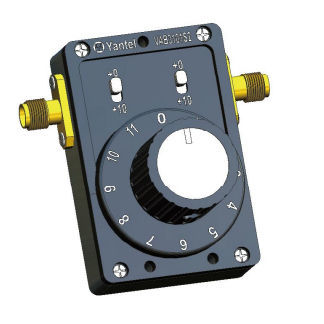

Variable attenuator VAB3101S2

DC to 2.7GHz 0 to 31 dB in 1 dB Step 2 Watt or 5 Watt SMA Connectors，N type，BNC available Ultra small size with innovative microstrip technology Available step value:0~31dB. High accuracy High performance low cost Impedance: 50 or 75 ohm Operation repeatability:10000 times each switch POM material in rotary switch,operating up to 85℃ Smart size Frequency Range DC to 2.7GHz Attenuation 0 to 31dB Step Value 1 dB Insertion loss at 0dB 0.50dB at 2.3GHz 0.50dB at 2.5GHz 0.65dB at 2.7GHz Attenuation Accuracy (typical) 0.55dB at 2.3GHz 0.65dB at 2.5GHz -0.5 to +0.8dB dB from DC to 2.7GHz Nominal Impedance 50 Ohm Average Power 2 Watt Operating Temperature -40℃ to +85℃
