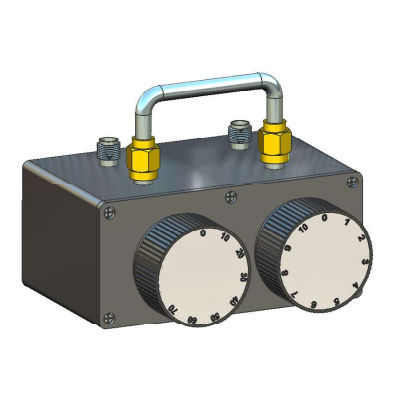

Variable attenuator VAB067001
Add to favorites
Compare this product
Characteristics
- Options
- variable
Description
DC to 6.0GHz
0 to 70 dB in 1 dB Step
5 Watt or 10 Watt
Ultra small size with innovative microstrip technology
Available step value:0~70dB.
High accuracy
High performance low cost
Impedance: 50 ohm
Operation repeatability:5000 times each switch
POM material in rotary switch,operating up to 85℃
Smart size
Frequency Range DC to 6.0GHz
Attenuation 0 to 70dB
Step Value 1 dB
Insertion loss at 0dB 1.0dB at 3.0GHz
1.8dB at 6.0GHz
Attenuation Accuracy (typical)
+1.0dB from DC to 3.0GHz
-0.5dB to +3.0dB from DC to 6.0GHz
Nominal Impedance 50 Ohm
Average Power 5 Watt
Operating Temperature -40℃ to +85℃
