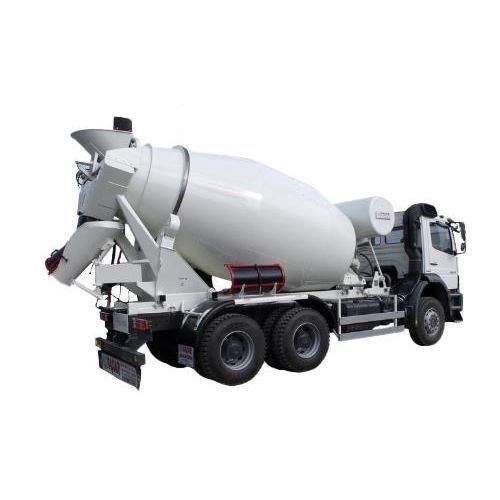

Concrete mixer truck YTM-9

hydraulic

All of the water tank that manufactured by our company is produced 1000 liters capacity.The water tank is manufactured 4 mm plate and tgere is a shows the available occupancy from one side. General Features Reducer: Transmital 580 Hydraulic Pump: Minimum Eaton 90 CC Milled Hydraulic Pump Hydraulic Motor: Minimum Eaton 75 CC Hydro Motor is used. Oil Cooler: The high-performance oil cooler with a filter, oil thermostat and electric cooling fan ensures that the hydraulic oil operates at the ideal operating temperature. ASAHYD 24 V and oil tank and refrigerant are integrated as a unit. Water Pump: The powerful water pump mounted directly to the gearbox has the capacity to pump 413 liters of water per minute. Transmixer boiler ST 52 is made of 5 mm sheet material. Transmixer boiler mixers are manufactured from 5 mm ST-52 sheet metal. The boiler ring is made of noble steel with a size of 70x70. Ring rollers are manufactured from special GGG 60 ductile iron material with Ø200 mm diameter. It is assembled with bolts for easy maintenance and lubrication. Transmixer Frame 160 N.P.U. into 140 N.P.U. superior strength is provided. The vehicle chassis is connected to the transmixer chassis with 6 pieces of 7/8 fine threaded connections, except for the chassis plates. The water tank of the transmixers is produced with a minimum capacity of 800 liters. The water tank is made of 4 mm sheet metal. On the left side of the water tank there is a lit indicator showing the occupancy rate. Transmixer fenders are made of sheet material, front and back plastic. Foldable additional groove oval design allows the flow of concrete without allowing clogging.
