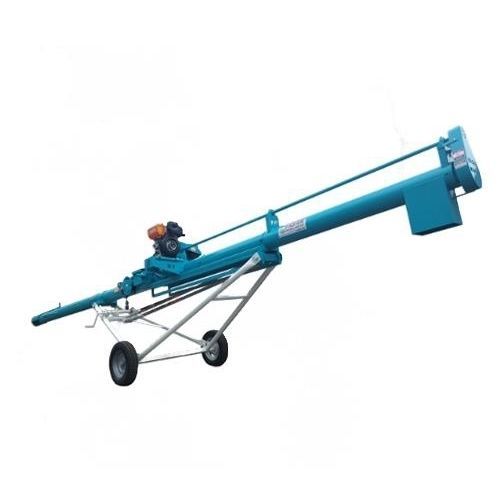

Automatic Removal System geared motor is driven by the control panel. The advantage of this system allows the construction of the spiral height adjustment without manpower. General Features Diameter of Spiral Pipe: 6 ”, 8”, 10 apı, 12 Hel Spiral Wing Diameter: 145, 180, 220, 250, 300 mm. Helical Length: 6, 7, 8, 9, 10, 11, 12 Meters. The spiral is designed to work smoothly in the product to be shipped. The body pipe is chosen in thickness according to the abrasive property of the product to be transported. In the system, the motor power can be made to the screw shaft by the belt pulley transfer system or it can be made by direct connection. Spiral leaves are made of special cold draft material. Sealing system is placed on the bearings so that the product is not damaged. Spiral can be manufactured as fixed or wheeled according to the way of use. There is an adjustable lid in the spiral product inlet. The movement of the screw can also be produced in such a way that it can be matched with the electric motor or diesel engine, and can be operated from the tractor's tail shaft. Outlets are manufactured as standard round models. Usage Area Generally used in the transportation and loading of agricultural products, granular granules can be used in the transportation of all kinds of products. It can be produced in mobile or fixed type models and it is a solution for product transportation in feed mills, flour mills, rice mills etc. facilities.
