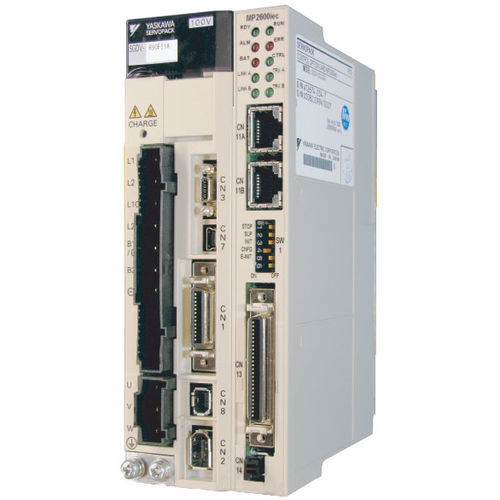

1-axis motion controller MP2600iec

servomotorEthernetModbus TCP

Rounding out the MPiec Series is the MP2600iec single axis controller. It is available or both Sigma-5 and Sigma-7 amplifiers. - IEC61131-3 and PLCopen programming standards - Controller and servo controller integrated in one unit Communication Protocols - Open standards EtherNet/IP and Modbus/TCP for connectivity to many peripheral devices on the market. Standard Programming Languages - IEC61131-3 means that programs are developed and executed with predictable behavior. Programmable Amplifier Outputs - The controller can operate local SERVOPACK outputs. This reduces panel cost and space requirements when just a couple of outputs are necessary. Remote I/O - Numerous third-party remote I/O modules such as Phoenix, Wago, and Opto 22 can be interfaced with the system via MECHATROLINK and Ethernet. Web Server - A built-in web server offers standard controller diagnostic information eliminating the need for special software for maintenance personnel
