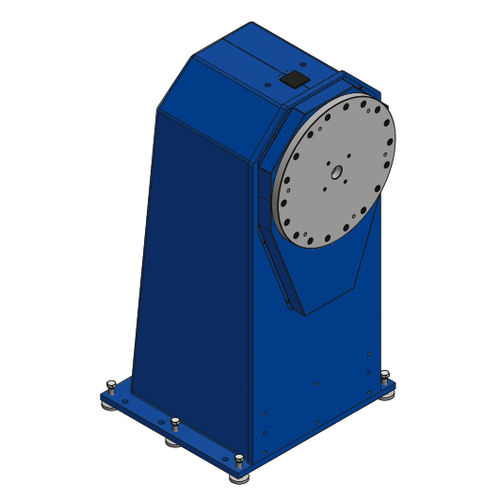

Motorized positioner HSB series

rotary1-axisfor robots

Overview Heavy duty one station positioner series for workpieces requiring rotation about one axis, and a maximum payload of up to 20 tons. Since the supply lines are fed through the centre of the face plates, the fixtures can be adapted to customer requirements (e.g. hydraulics, water, etc.). To support long workpieces it is advisable to use a supplementary tailstock like SPB or SPE. The free standing tailstocks can be mounted an appropriate distance from the positioner. Rigid design Designed for heavy duty Supplementary tailstocks available
