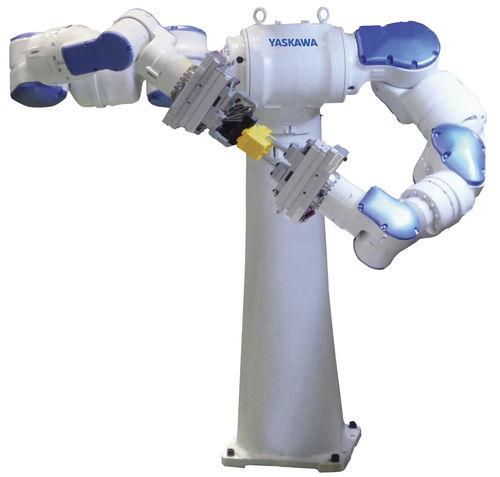

Articulated robot SDA5F
collaborative15-axishandling

articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated, collaborative
Number of axes
15-axis
Function
handling, for assembly, packaging, transfer
Mounting
floor-mounted
Application domain
for the food industry, for the automotive industry, for the electronics industry, laboratory
Payload

5 kg
(11.023 lb)

Reach

Max.: 845 mm
(33.27 in)

Min.: 0 mm
(0 in)

Repeatability

0.06 mm
(0.0024 in)

Description

Overview The SDA5F is a dual-arm, 15-axis robot designed for complex assembly and small part material handling applications. Both arms can work together dramatically simplifying end-of-arm tooling. Designed with patented servo actuators, all cables are routed through the arms. The FS100 is a powerful controller with unmatched open software architecture. Superior dexterity and best-in-class wrist characteristics make slim, dual-arm robot ideally suited for assembly, part transfer, machine tending, packaging and other handling tasks that formerly could only be done by people.
