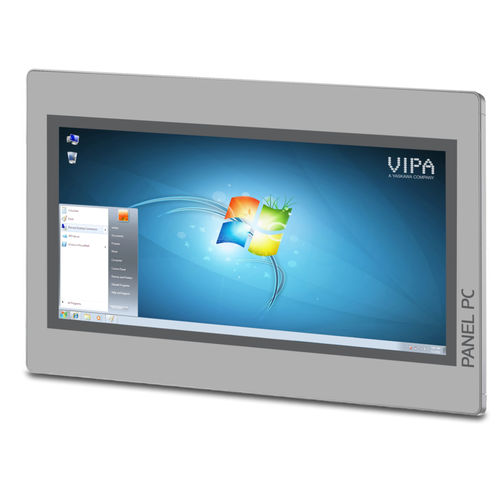

LCD panel PC PPC series

full HDWindows embeddedcompact

The combination of industrial PC with state of the art performance features and a Touch Panel with ideal display capabilities enables the user to concentrate high performance into the smallest space. The latest Intel Atom processor technology, large integrated work memory and display resolutions of up to Full HD with the 21.5” panel PC are state of the art. The panels have also numerous useful interfaces just like other VIPA Touch Panels. The pre-installed operating systems Windows Embedded Compact 7 or Windows Embedded Standard 7 are state of the art in the PC world. For visualization your own programs or optionally the latest pre-installed Movicon visualization can be chosen. Features Display size: 10,1“wide (16:10), 15,6“wide (16:9) und 21,5“ wide (16:9) Display resolution: 1280x800 (10,1"), 1366x768 (15,6“) und 1920x1080 (21,5“) Display type: PCAP, Multitouch Housing: metal Processor: Intel Atom D2550 dualcore@1,86 GHz Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232,RS422/RS485), Audio out Memory: work memory 2GB Operating system and user memory: 16GB mit WES7, 2GB mit WEC7 Memory card slot: CFast Operating system: Windows Embedded Compact 7 oder Windows Embedded Standard 7 Visualization: optional Movicon 11 CE Standard pre-installed Visualization system Movicon Vector graphics editor with powerful and clear symbol library Comprehensive I/O driver library (variables import from the PLC possible) Efficient alarm management Multi-lingual language support Disturbance and operating data acquisition Archiving process data with trend curves Comprehensive driver library Project scalability of Movicon basic systems to Movicon SCADA platform
