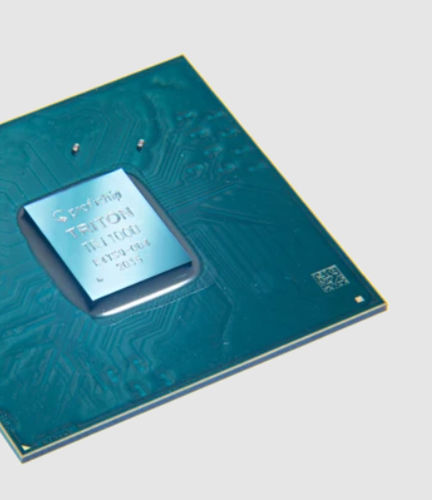

Ethernet communication controller TRITON

high-speedUSB

Triton combines industrial gigabit Ethernet communication with a fast and reliable backplane system as well as a powerful motion/automation multicore processor in one product with low power dissipation. Main Features • Future ready with TSN support, DDR4, PCIexpress and Security Core • No heatsink needed thanks to low power consumption • Low Total Cost of Ownership due to integrated functionalities (Backplane Master, PHYs, etc.) • 3 cores with high single thread performance best suited for motion and PLC tasks Discover New Ways • For high-speed number crunching • For industrial real-time communication • For reliable and synchronous backplane communication • Everything secure and with low power Processor System Processor System • 3 x ARM Cortex A17 cores with up to 1.26 GHz • 64-bit floating point unit per core • 64/32 kB instruction/data cache • 2 Mb of L2 cache (with ECC) Memory Interfaces Memory Interfaces • 64-Bit DDR4-2000 RAM (16 GB/s bandwidth, with ECC support) • MMC/SD card controller QuadSPI flash controller • 8/16-bit SRAM controller (Master/Slave) • 8-bit NAND flash controller Serial Interfaces Serial Interfaces • PCIexpress up to Gen3, max. 4 lanes, max. 3 controllers, max. 40 Gbit/s in Full Duplex, RC/EP virtual channels, time synchronization • USB 2.0 host/device controller (480 Mbit/s) • 2 x UART (12 Mbit/s) • 3 x SPI Master/Slave controller, max. 78 Mbit/s ••2 x I²C Security • Secure boot (signed and encrypted) • integrated eFuse for customer key storage • AES 256 GCM hardware acceleration •True random number generator • IOMPU (memory protection for I/O devices) Advanced Real-Time Gigabit Ethernet Solution • 4 x Gbit Ethernet port
