PROFIBUS communication controller proficonn

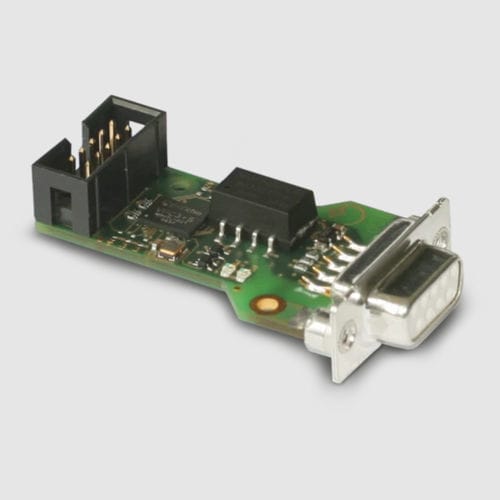

PROFIBUS DP Slave Modules with Serial Interface VPC3+S based SPI interface (up to 6 Mbit/s) Isolated RS485-interface up to 12 Mbit/s Status LEDs for power and DataExchange Vcc 3.3V Supporting PROFIBUS-DP-V0, DP-V1 and DP-V2 4 kByte communication RAM With 9-pin DSUB-connector for direct enclosure mounting Flat cable connector for SPI communication and power supply Dimensions: 58 x 31 x 16 mm 28 pin Dual-Inline-Package format SPI and I²C interface PCB mounting via standard IC socket Dimensions: 36 x 18 x 10 mm
