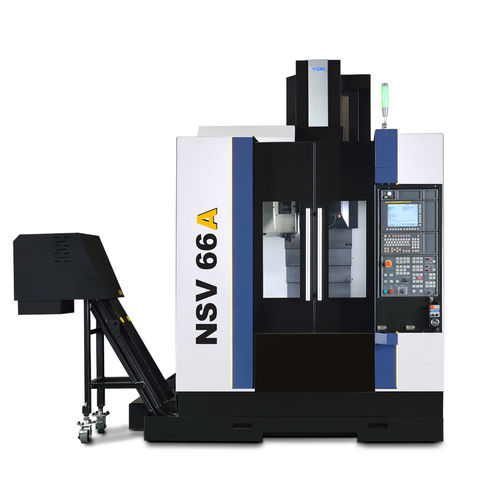

3-axis CNC machining center NSV66AverticalBBT40cutting
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BBT40
- Associated functions
- cutting
- Other characteristics
- high-performance, direct-drive
- X travel
660 mm
(25.98 in)- Y travel
510 mm
(20.08 in)- Z travel
560 mm
(22.05 in)- Rotational speed
12,000 rpm, 15,000 rpm
(75,398 rad.min-1, 94,248 rad.min-1)- Power
22 kW
(29.91 hp)- Work feed X-axis
50,000 mm/min
(33 in/s)- Work feed Y-axis
50,000 mm/min
(33 in/s)- Work feed Z-axis
48,000 mm/min
(31 in/s)- Table load capacity
500 kg
(1,102 lb)- Tool weight (max)
6 kg
(13.2 lb)- Weight
6,500 kg
(14,330.05 lb)
Description
Isolated Direct Drive Spindle
Result in excellent surface finish while maximizing both spindle and tool life under hard milling conditions.
High Rigidity Structural Design
X/Y/Z axes equipped with the roller type linear guideways and large diameter ball screw that maximize aluminum chip disposal during processing
Extra large delta machine column
Wide distance between guideways
Advanced design with reinforced body structure through FEM analysis, the NSV series offers superb cutting performance and reduced vibration to meet the highest machining demand.
Column Mounted Design
Minimizes the vibration during tool change
Tool magazine capacity: 30T
ATC auto door as a standard prevents coolant and chips from entering tool magazine.
