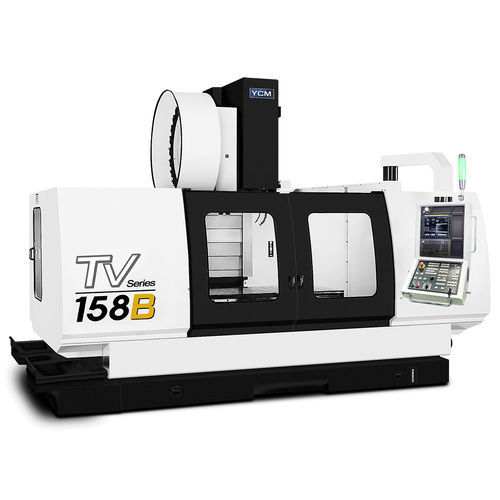

3-axis CNC machining center TV158BverticalBT 5024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 50
- Number of tool stations
- 24 tools, 40 tools, 32 tools
- Associated functions
- cutting
- Applications
- for heavy-duty machining
- Other characteristics
- high-speed, high-performance, high-precision, high-rigidity, high-power, direct-drive
- X travel
1,500 mm
(59.06 in)- Y travel
860 mm
(33.86 in)- Z travel
750 mm
(29.53 in)- Rotational speed
6,000 rpm, 10,000 rpm
(37,699 rad.min-1, 62,832 rad.min-1)- Power
18.5 kW, 22 kW, 25 kW, 45 kW
(25.15 hp, 29.91 hp, 33.99 hp, 61.18 hp)- Work feed X-axis
15,000 mm/min
(10 in/s)- Work feed Y-axis
15,000 mm/min
(10 in/s)- Work feed Z-axis
12,000 mm/min
(8 in/s)- Table load capacity
2,000 kg
(4,409 lb)- Weight
18,000 kg
(39,683.21 lb)
Description
The Best Force Flow T-base Design
The long travel of X-axis lies on the top of the base, where the saddle moves along the full stroke; the cross Y-axis saddle supports the work table.
The T-base rigid structure has full stroke support and do not have overhang problem guarantees the most dynamic leveling accuracy.
All axes are equipped with hardened and precision ground integrated square guideway with durable Turcite-B lubrication coating.
Sophisticated scraper work guarantees the best contact and perfect surface of the components to assure flawless accuracy.
Inner-rail design on Z-axis ensures smooth movement of the headstock during heavy cutting performance. And the counter weight of Z-axis headstock is secured by guide bar to minimize machining vibration.
The Y-axis is equipped with 4 guideways to gain the best support and forceflow.
